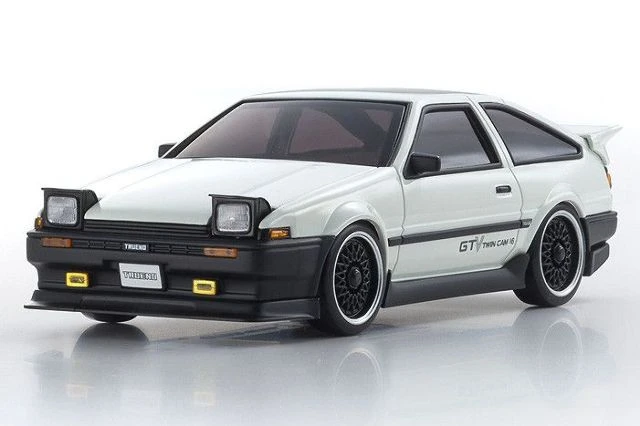

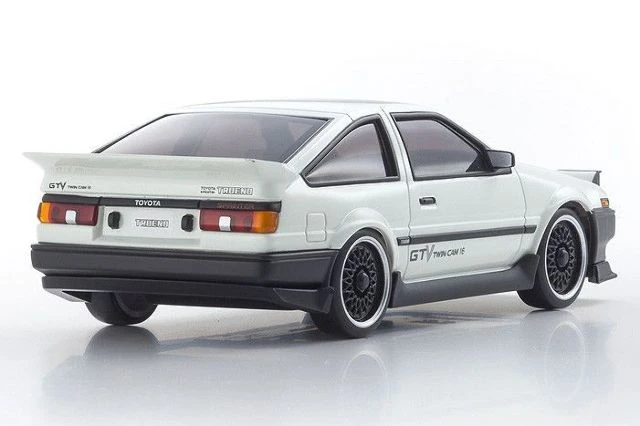

32172GTV-B MINI-Z AWD MA-020VE PRO Trueno GTV AE86 White+D Evo. BCS

PRO spec chassis set is optimized for drift driving with gyro unit and full ball bearings.

Kyosho’s PRO spec circuit board incorporating the advanced MHS (MINI-Z Hybrid Spread Spectrum) 2.4GHz system combines with the hugely popular MA-020VE Body Chassis Set! The MA-020VE PRO is optimized for drift driving with the combination of KV8500 Xspeed VE motor, gyro unit, AWD and drift tires and when used with high-end transmitters like the Syncro EX-6R and Syncro EX-6 (both sold separately), achieves the fastest response in the history of the MINI-Z series. A street tuned body adds to the drift racing excitement. The MA-020VE PRO is also compatible with existing ASF 2.4GHz systems and can be paired with the Perfex KT-18 and the KO PROPO EX-1 transmitters.

MA-020VE PRO chassis equipped with gyro unit and drift tires
Includes street tuning body, popular with drift drivers
MR-03’s VCS front suspension installed
Includes parts for either narrow or wide setting of front section
Features rear double wishbone suspension ‘DWS’
Full ball bearing specifications include 14 bearings
Ultra fast signal processing speed results in almost instantaneous control response.

Kyosho 32172GTV-B MINI-Z AWD MA-020VE PRO Trueno GTV AE86 White+D Evo. BCS 32172GTV-B -Kyosho 32172GTV Motor

8500kV XSPEED VE brushless motor that delivers drive power to all four wheels is the perfect match for the AWD chassis.

Kyosho 32172GTV-B MINI-Z AWD MA-020VE PRO Trueno GTV AE86 White+D Evo. BCS 32172GTV-B -Kyosho 32172GTV DWS

DWS features downstop mechanism, ball-connected system on suspension shafts and friction damper that use grease to adjust level of damping force.

Kyosho 32172GTV-B MINI-Z AWD MA-020VE PRO Trueno GTV AE86 White+D Evo. BCS 32172GTV-B -Kyosho 32172GTV Front

VCS optimizes camber in accordance with suspension stroke to deliver sure-footed traction and grip.

Kyosho 32172GTV-B MINI-Z AWD MA-020VE PRO Trueno GTV AE86 White+D Evo. BCS 32172GTV-B -Kyosho 32172GTV M

Chassis Set Contents

Factory assembled chassis with R/C unit installed
Painted body finished with markings
Pinion gears: 15T,17T,19T,21T
Spur gears: for M/L/LL wheelbases 27T/29T/31T
Parts for changing wheelbase
Parts for changing front tread
Pinion gear tool
Spare wheel nuts and wrench
Pairing stick
Gyro unit
Drift tires (4, narrow)

Required for Operation

MHS 2.4GHz transmitter (EX-6R, EX-6) or ASF 2.4GHz transmitter (Perfex KT-18, KO PROPO EX-1)
4 x AAA batteries for transmitter
4 x AAA alkaline batteries or 4 x Ni-MH for chassis

Chassis Technical Data

Length 167mm

Width 68mm

Height 43mm

Wheelbase 94mm (L)

Tread (F/R) 58.5mm/58.5mm

Tire (F/R) F25.0 x 8.5mm / 25.0 x 8.5mm (drift)

Gear Ratio 7.2, 6.4, 6.0 5.7, 5.3, 5.0, 4.5 : 1

Weight 194g (approx.)

Motor KV 8500 Xspeed VE brushless
