Kyosho 11251P CALMATO Alpha 40 TRAINER EP/GP Toughlon (Purple)

Replica competition model joins Kyosho’s beginner-friendly lineup of high-performance trainers!

This new addition to the Kyosho Calmato α 40 lineup exhibits an optimal balance of flying stability and direct control response, ideal for flight training. The Calmato reacts calmly to severe control inputs and maintains its posture even with unexpected stalls at low speed to create the best early flying experience for beginner flyers. Film covering is upgraded from PVC to superior quality reverse-side printed Toughlon which delivers both improved durability and lighter weight. Urethane clear coating can also be applied to prevent wrinkling over long time periods and unlike PVC films, dry-type cover film can also be applied for damage repairs. The fuselage features the Calmato’s unique EP/GP convertible design that requires no gluing to dramatically reduce assembly time. New coloring pattern allows coloring on upper and lower surfaces to be changed to improve visibility when flying. The exquisite finish replicates competition model standards and provides beginners and existing Calmato Alpha owners with the 1 model to enjoy all aspects of R/C airplane flying.

• Superior stability and direct control response provides an ideal introduction to R/C airplane flight.
• Covered in lightweight Toughlon film that is more resistant to wrinkling and sagging than PVC film.
• Convertible design allows choice of preferred power source, electric motor (EP) or gas engine (GP).
• Glueless design requires no adhesives to complete.
• Main wing halves are joined by aluminum pins and can be separated for easy transportation.

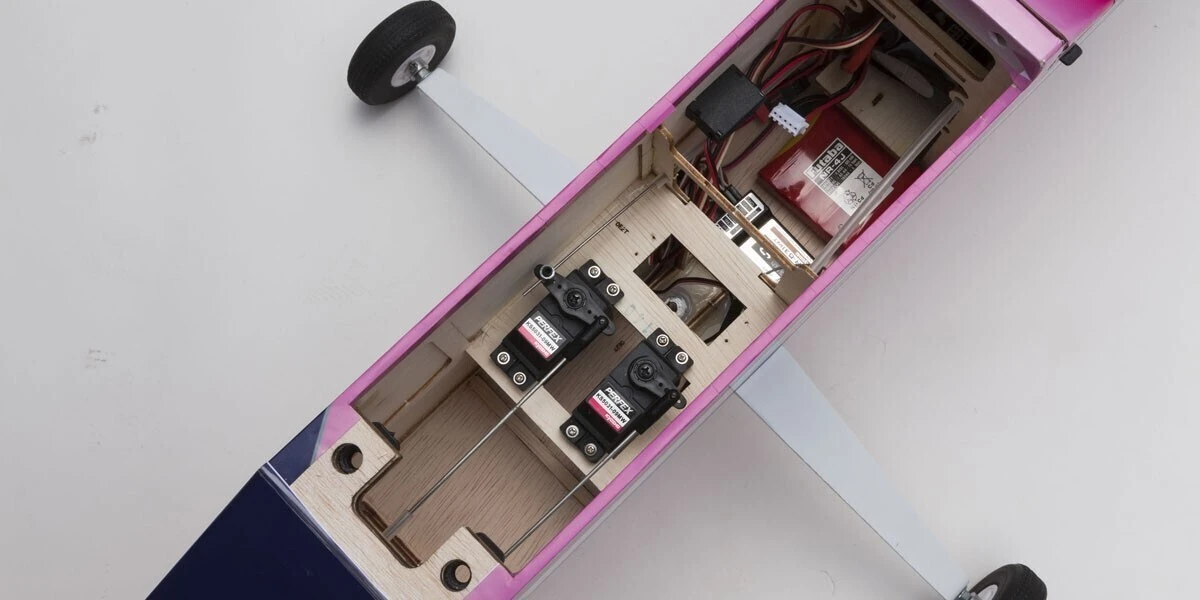

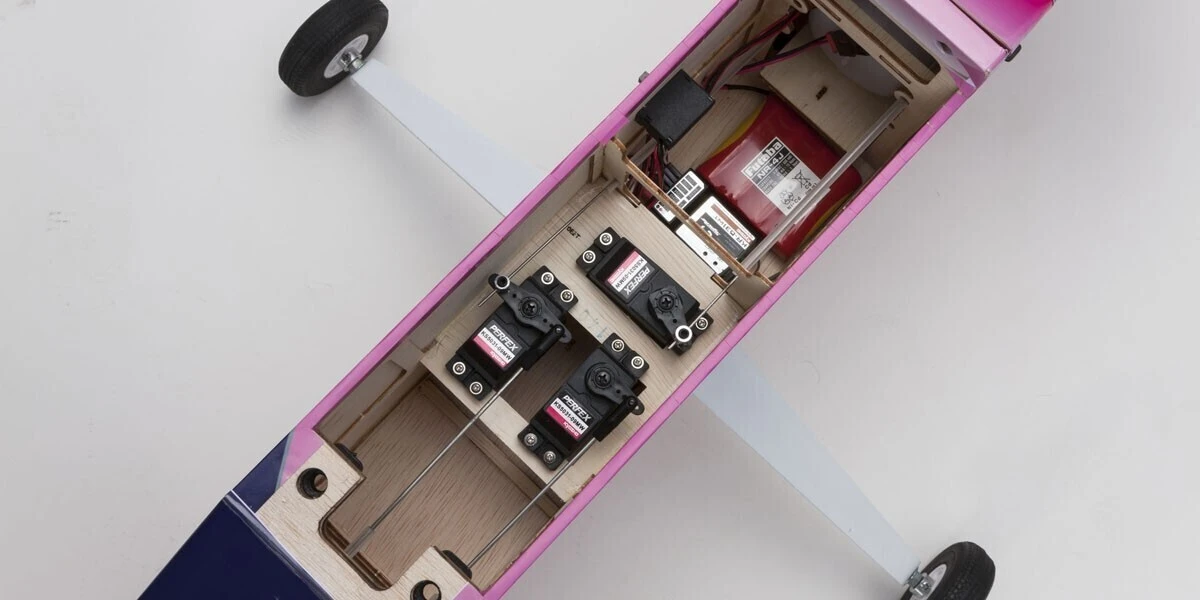

• Vertical stabilizer, servo bed, aileron and rudder are all pre-installed.
• Use of 4-cell 14.8V Li-Po battery enables powerful flight.
• Lightweight structure of the balsa fuselage provides calm and easy flight characteristics.
• Comes with pre-assembled fuel tank.
• Flexible pipe linkage rods for rudder and elevator are pre-installed.
• Equipped with pre-installed fuel tank.
• Includes spinner, linkage parts set and lightweight sponge tires.

Advanced glow fuel resistant Toughlon film covering is more resistant to wrinkling and sagging than normal PVC film.

Convertible design allows either electric motor or glow fuel engine to be used as power source. If you prefer quiet flight with no oil mess, choose the EP specification.

If you like the sound of the exhaust note and feeling the power of an engine, choose the GP specifications.

Main wing halves are joined with aluminum pins, and independent left & right aileron servos enable compact transportation.

Technical Data

• Lengthã1300mm
• Widthã1600mm
• WeightãEP/2,550g (approx.), GP/2,450g (approx.)
• Motorã600-1000W BL Motor (sold separately)
• Engineã2 Cycle 40-46 class engine (sold separately)
• Battery (EP)ã14.8V-4,000-5,000mAh Li-Po battery (sold separately)
• Main Wing Areaã 44dm2
• Wing Loadingã55.7-55.9g/dm2
• Airfoil ãOriginal semi-symmetrical
• Propeller sizeãD11 x P7-D12 x P8 (sold separately)
• Tire sizeãNose 60mm / Main 60mm
• Dihedralã2.5°
• Side Thrustã2°
• R/C system (EP)ã4ch, 4 servo, 1 ESC (sold separately)
• R/C system (GP)ã4ch, 5 servo (sold separately)

Kit Contents

• Pre-assembled fuselage covered in film
• Linkage parts set
• Engine mount
• Fuel tank
• Silicon tube
• Motor mount
• Spinner
• Main, nose gear set
• Cowling for EP
• Decals

Required for Operation

EP Version

• 4 channel, 4 servo R/C system for airplanes (standard servo x 4)
• Batteries for transmitter
• 100mm Y extension cord x 1 for aileron servo
• 200mm extension cord x 2 for aileron servo
• Propeller
• Out Runner BL motor for 40-50 class
• ESC
• Li-Po battery
• Charger for Li-Po battery

GP Version

• 4 channel, 5 servo R/C system for airplanes (standard servo x 5)
• Batteries for transmitter
• 100mm Y extension cord x 1 for aileron servo
• 200mm extension cord x 2 for aileron servo
• Propeller
• 2 cycle 40-46 engine for airplanes
• Starting tools (plug heater, starter, starter battery, charger)
• Glow fuel for airplanes

“
