Kyosho 1/10 Optima 4WD Electric Racing Buggy Kit [30617B]

The Kyosho Optima 1/10 4wd Buggy was originally released in 1985, and was a technical masterpiece that set a new standard for RC performance. 30 years later, the original Optima has become the white buffalo of vintage enthusiasts and collectors around the world. With a blend of vintage style and modern technology, the Optima is once again ready to lead the charge in a battle for on track dominance.

Features:

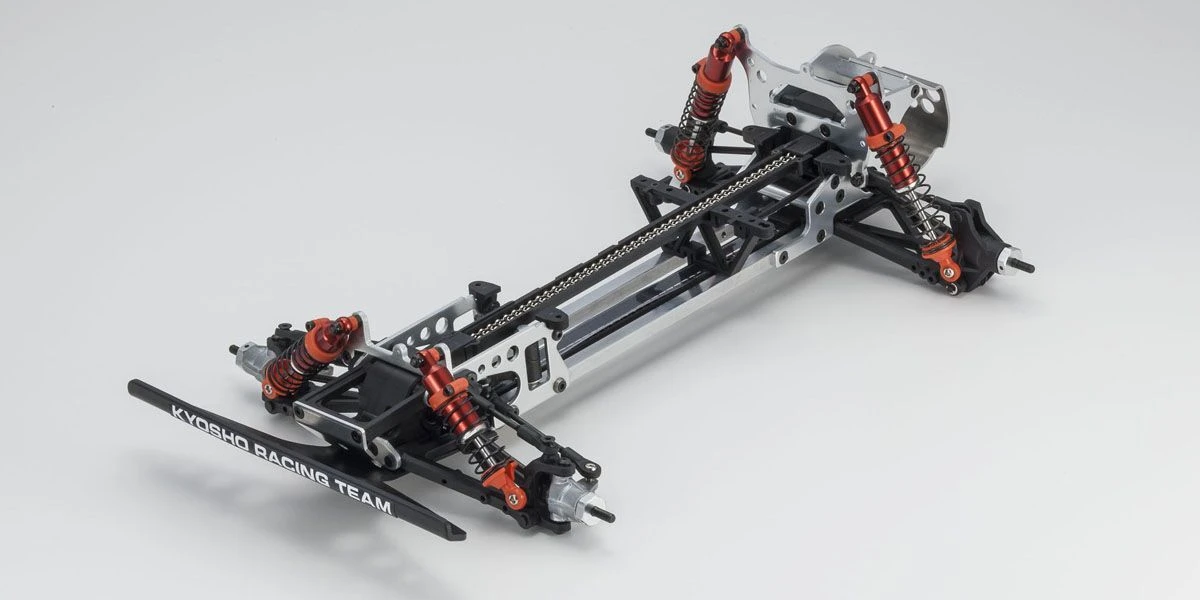

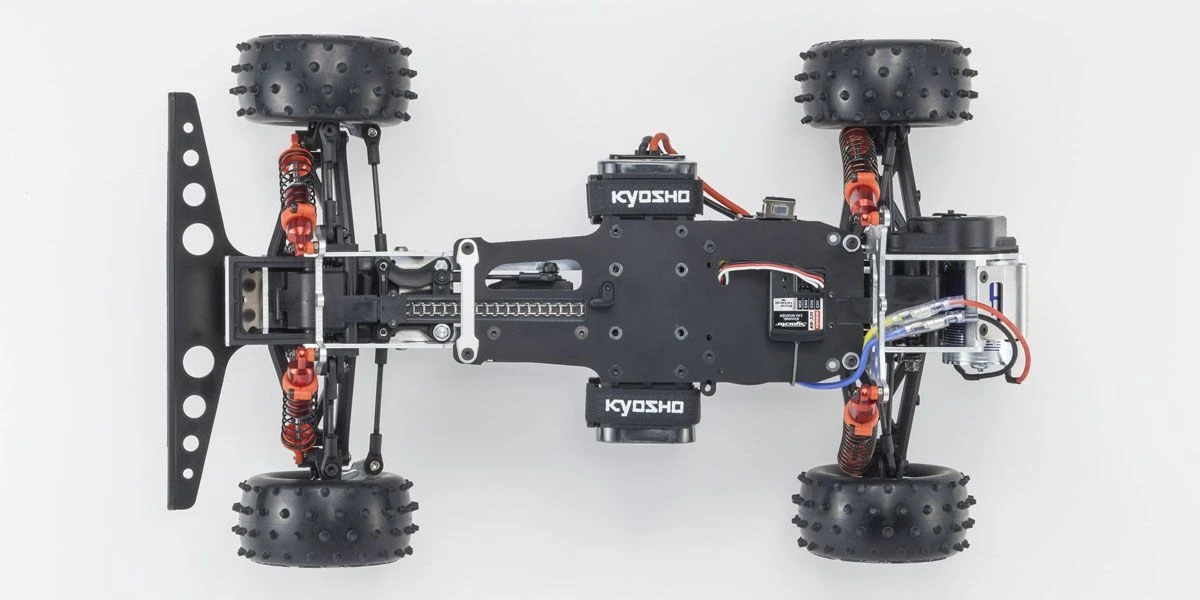

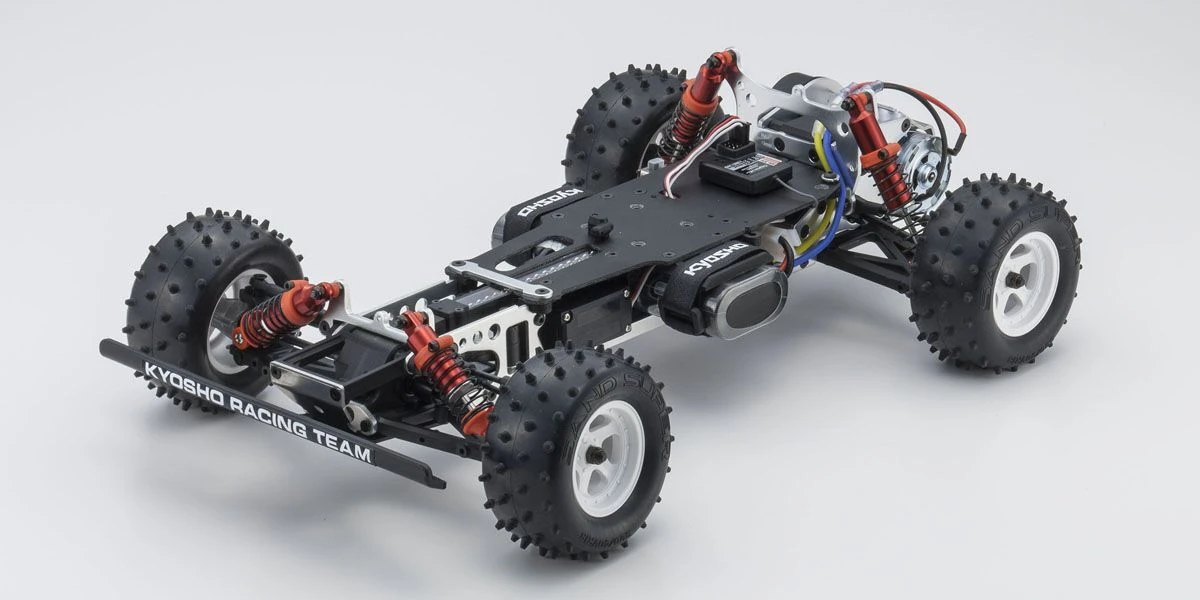

Chassis: All plates and the main chassis bars are now 6061T6 aluminum (counter sunk). Aluminum chassis bars are slightly thicker for more durability.
Drive-train: Kit includes both chain and belt drive trains allowing use of more powerful motors. Diff gears now have ball bearings installed.
Gears: Now in 48 pitch gears. Sintered alloy gears combined with high impact nylon gears and newly added slipper clutch will cope with the current power plants.
Shocks: 10mm diameter aluminum cylinder with SUS shaft allows improved damping.
Tires/Wheels: Slightly modified tread designs and softer compound for superior grip and handling. Rear tires include inner sponge. 1 piece wheel design.
Bumpers: 2 Types of bumpers included (Wide and Narrow)
Motor Guard: Aluminum motor guard
Geometry: Updated geometry and servo fixture
Hardware: All Hex
Driver: Molded helmet design.
Option Parts: We will release various option parts.
Electronics compatibility: The 2014 Scorpion is compatible with the current standard servos, receiver units, ESC’s, motors and battery packs.
Packaging: Similar to the original with blister pack showing some of the parts included. Some parts will be preassembled and parts will be bagged in steps following the instruction manual for easy assembly.

Specifications:

Length: 395mm
Width: 240mm
Height: 120mm
Ground Clearance: 36mm
Wheelbase: 260mm
Tread (F/R): 204mm / 204mm
Tire (F/R): 86f x 40mm / 86f x 40mm
Gear Ratio: 9.24:1
Weight: approx. 1,600g
Motor: 540 class size
Battery: Ni-MH / Li-PO Standard Size / short size
R/C System: 2 channel, 1-servo, ESC

Includes:

Pre-assembled kit (gearbox and oil shocks are pre-assembled)
Clear polycarbonate body
Decals
L-shape hex wrench
Cross wrench
Shock wrench
Shock oil
Grease
Threadlock glue

Needed to Complete:

2-ch, 1-servo R/C system for cars
540-class motor (30-27 turns recommended)
ESC compatible with motor
Battery pack for chassis
Battery charger
Paint for painting the polycarbonate body
Batteries for R/C transmitter
Tools (1.5, 2.0, 3.0mm hex wrench)
